SH Double-Suction Pump

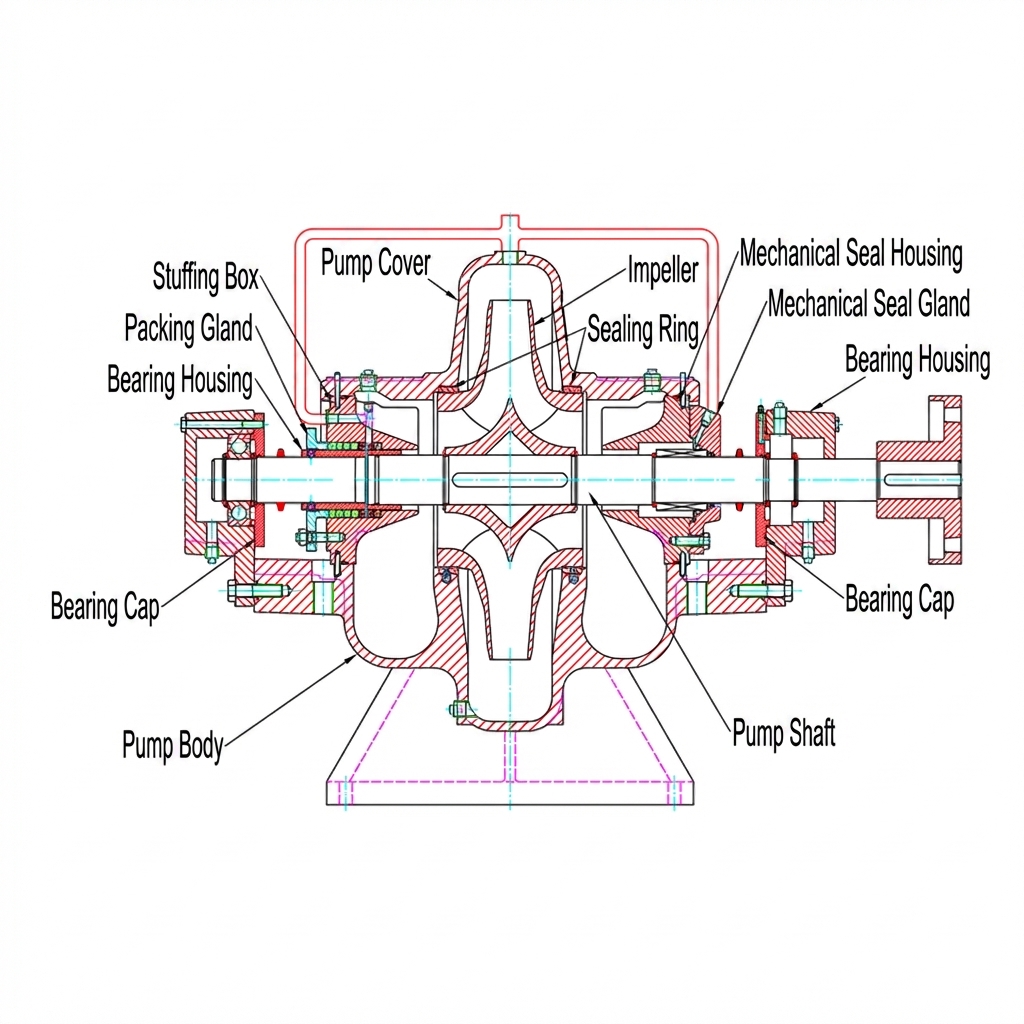

As a significant type of centrifugal pump, the double-suction pump is widely utilized in engineering applications due to its characteristics of high head and large flow rate. The impeller of this pump configuration effectively consists of two impellers arranged back-to-back, with the water flowing from the impellers converging into a single volute casing. Double-suction pumps possess the following key features: they function as the equivalent of two single-suction impellers of identical diameter operating simultaneously, thereby doubling the flow rate for a given impeller outer diameter; the pump casing is horizontally split, facilitating convenient inspection and maintenance; furthermore, the inlet and outlet of the double-suction pump are aligned in the same direction—perpendicular to the pump shaft—which simplifies the layout and installation of the pump and its associated piping; finally, the impeller structure of the double-suction pump is symmetrical, resulting in a balance of axial forces and ensuring relatively stable operation.
| Features |
|---|
| Features such as high head and large flow rate. |
| It is equivalent to two single-suction impellers of the same diameter operating simultaneously. |
| The liquid temperature must not exceed 120°C. |
| Compact Structure: Aesthetically pleasing, highly stable, and easy to install. |
| Runs smoothly, features low noise, and has a long service life. |
| Sealing is employed to prevent fluid leakage. It can be applied at temperatures up to 316°C. |
| Technical Parameters | |
|---|---|
| Product Name | SH Double-Suction Pump |
| Pump Structure | Horizontal Centrifugation |
| Rated Flow Rate |
126–10080 m³/h |
| Rated Head |
17–100 m |
| Power Range |
30–2000 kW |
| Rated Voltage |
AC 380V/660V 50Hz |
| Wetted Parts Materials | Wear-Resistant Cast Iron |
| Sealing Type | Mechanical Seal |
| Applicable Media | Sewage and other mixtures |
| Installation Method | Horizontal Installation |
Strict inspection of composition and dimensions ensures stability from the source.
Key components like impellers and shafts are CNC machined for high consistency.
Coating and heat treatment tailored for water, sewage, slurry, and chemical environments.
Assembly by SOP (Standard Operating Procedure) ensures minimized vibration and leak-proof performance.
Full testing of head, flow, and efficiency before delivery for complete traceability.
Customized wooden crates or pallets with moisture-proof measures for long-distance transport.
Investing in equipment and training to ensure stable, high-quality international delivery.
Providing precautions and connection advice via documentation or video support for correct startup.
Maintenance advice on lubrication, sealing, and periodic inspections to extend equipment life.
Long-term supply of common spare parts and selection assistance from our engineering team.
Rapid analysis and solutions for any abnormalities found during use.
Regular check-ins on equipment status to provide optimization suggestions.
Committed to a professional, stable, and responsible service system for global partners.
-
