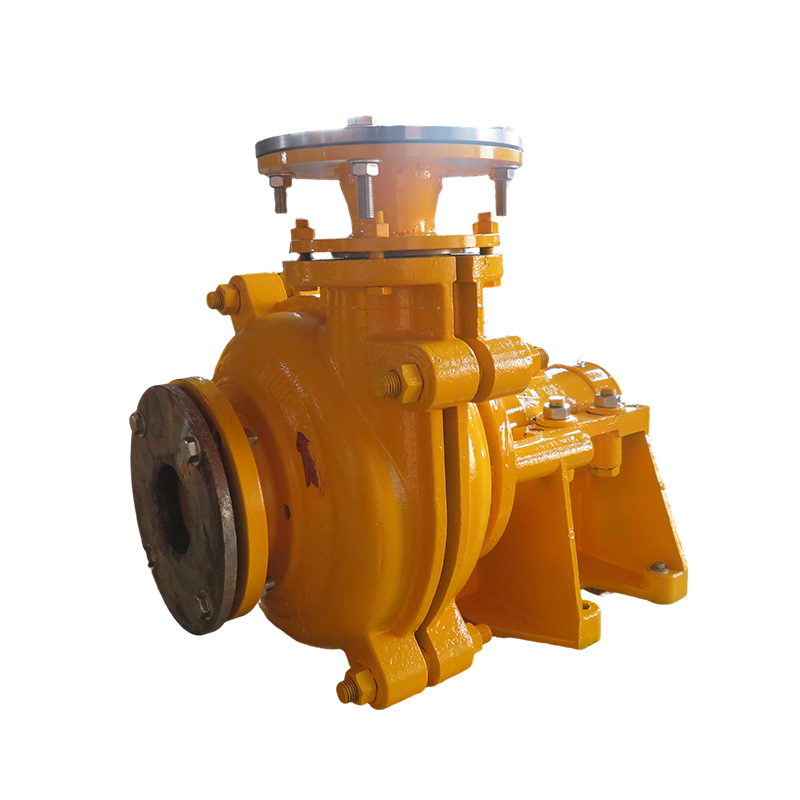

4-3C-AH Slurry Pump
Bearing Assembly: The pump's bearing assembly adopts a cylindrical structure, facilitating adjustment of the impeller-front guard clearance and allowing for complete disassembly during maintenance. The bearings are grease-lubricated. Shaft Seal: The pump's shaft seal types include packing seal, auxiliary impeller seal, and mechanical seal. Drive Methods: Options include V-belt drive, flexible coupling drive, gear reducer drive, hydraulic coupling drive, frequency converter drive, and thyristor speed regulation. V-belt drives include CL, CV, CR, ZL, ZV, and ZR drives. Overall Performance: The pump boasts a wide performance range, excellent cavitation performance, and high efficiency. Multi-stage series technology can be employed to meet long-distance transport requirements. Various metals are available for the flow-through components, and depth can be increased. Multiple speeds and variations allow the pump to operate under optimal working conditions. It has a long service life, high operating efficiency, and can meet various harsh transport conditions.
| Features |
|---|
| Single-stage, single-suction, cantilevered horizontal centrifugal slurry pump; robust structure and reliable operation. |
| Thick, wear-resistant flow components, with heavy-duty brackets, suitable for highly abrasive, high-concentration or low-concentration high-lift slurries. |
| Multiple stages can be connected in series within the maximum permissible working pressure range to meet long-distance transportation needs. |
| The pump features a dual-casing structure with an inner liner made of either wear-resistant metal or rubber, allowing for replacement only after wear is complete. This design ensures long maintenance cycles and low operating costs. |
| Impellers come in a variety of materials, and shaft seal options include packing seals, auxiliary impeller seals, or mechanical seals. |
| The nozzle can be rotated and installed in eight directions at 45° intervals, offering flexible installation options. |
| The bearing assembly has a cylindrical structure, which facilitates overall disassembly and assembly and clearance adjustment, and uses grease lubrication. |
| It has a wide performance range, high efficiency, and good cavitation resistance, and is suitable for operation at various speeds and transmission methods. |
| Technical parameters | |
|---|---|
| flow |
10.8-5400m?/h |
| Yangcheng |
3-118m |
| motor power |
15-1200KW |
| Material | The pump body has a replaceable metal or rubber liner, and the impeller is made of wear-resistant metal or rubber. |
| Transport medium | Shaft seal for conveying highly abrasive, high-concentration slurry |
| shaft seal | Packing seals or centrifugal seals can be used. |
| Scope of application | Mining, power, metallurgy, coal, building materials |
Strict inspection of composition and dimensions ensures stability from the source.
Key components like impellers and shafts are CNC machined for high consistency.
Coating and heat treatment tailored for water, sewage, slurry, and chemical environments.
Assembly by SOP (Standard Operating Procedure) ensures minimized vibration and leak-proof performance.
Full testing of head, flow, and efficiency before delivery for complete traceability.
Customized wooden crates or pallets with moisture-proof measures for long-distance transport.
Investing in equipment and training to ensure stable, high-quality international delivery.
Providing precautions and connection advice via documentation or video support for correct startup.
Maintenance advice on lubrication, sealing, and periodic inspections to extend equipment life.
Long-term supply of common spare parts and selection assistance from our engineering team.
Rapid analysis and solutions for any abnormalities found during use.
Regular check-ins on equipment status to provide optimization suggestions.
Committed to a professional, stable, and responsible service system for global partners.
-
