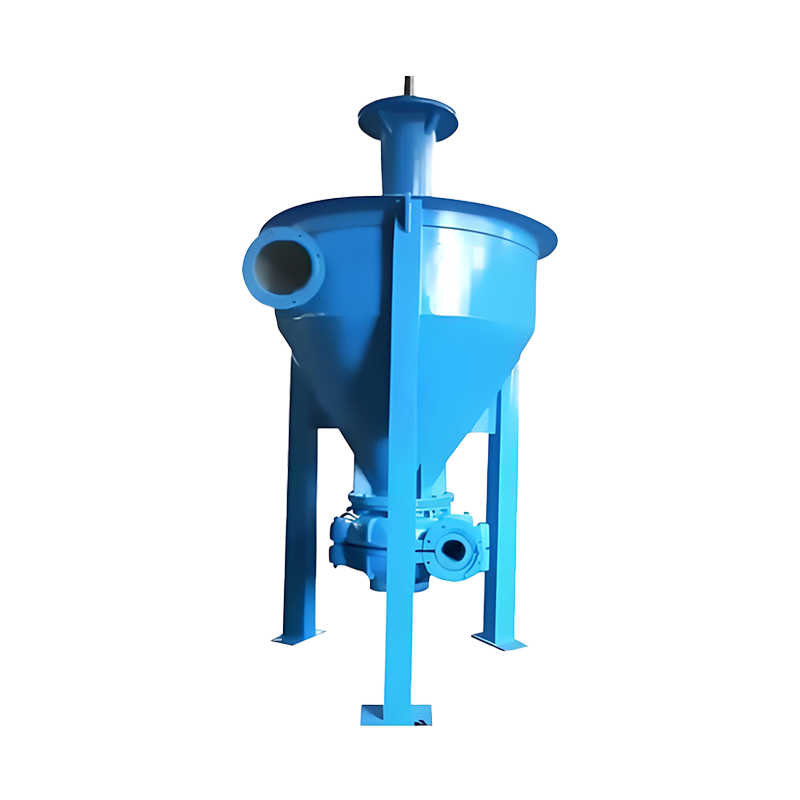

AF Vertical Foam Pump

AF series foam pumps are widely used in metallurgical, coal, and chemical industries. They are suitable for conveying abrasive and corrosive slurries containing foam, and effectively eliminate foam from the slurry during operation. They can operate normally even with insufficient feed material and are particularly suitable for various flotation processes, making them ideal for conveying foamy slurries.

Get a Quote
Download Manual



Features
Vertical structure design, small footprint, flexible layout
High foam mixing efficiency, fine foam, and stable output.
Key components are wear-resistant and corrosion-resistant, suitable for continuous operation.
Compact structure, easy to install and maintain
Can be used with automated production lines and foam cleaning equipment
Stable operation, low noise, and long service life



Product Parameters
Product Name AF Vertical Foam Pump
Structural form Vertical
Rated flow rate Customizable
Work pressure

≤0.6 MPa
motor power

0.75–3.0 kW
Power specifications

AC 380V / 50Hz
Pump body material Stainless steel / Engineering plastics (optional)
Applicable media Foaming liquid, water-based cleaning liquid
Operating mode Continuous operation
Production Process
We have a complete manufacturing system from raw materials to final products with standardized process control.
01
Raw Material & Component Acceptance

Strict inspection of composition and dimensions ensures stability from the source.

02
Precision Machining & Dimensional Control

Key components like impellers and shafts are CNC machined for high consistency.

03
Surface Treatment & Protection

Coating and heat treatment tailored for water, sewage, slurry, and chemical environments.

04
Standardized Assembly Workflow

Assembly by SOP (Standard Operating Procedure) ensures minimized vibration and leak-proof performance.

05
Performance Testing & Data Recording

Full testing of head, flow, and efficiency before delivery for complete traceability.

06
Final Inspection & Export Packaging

Customized wooden crates or pallets with moisture-proof measures for long-distance transport.

07
Continuous Process Optimization

Investing in equipment and training to ensure stable, high-quality international delivery.
