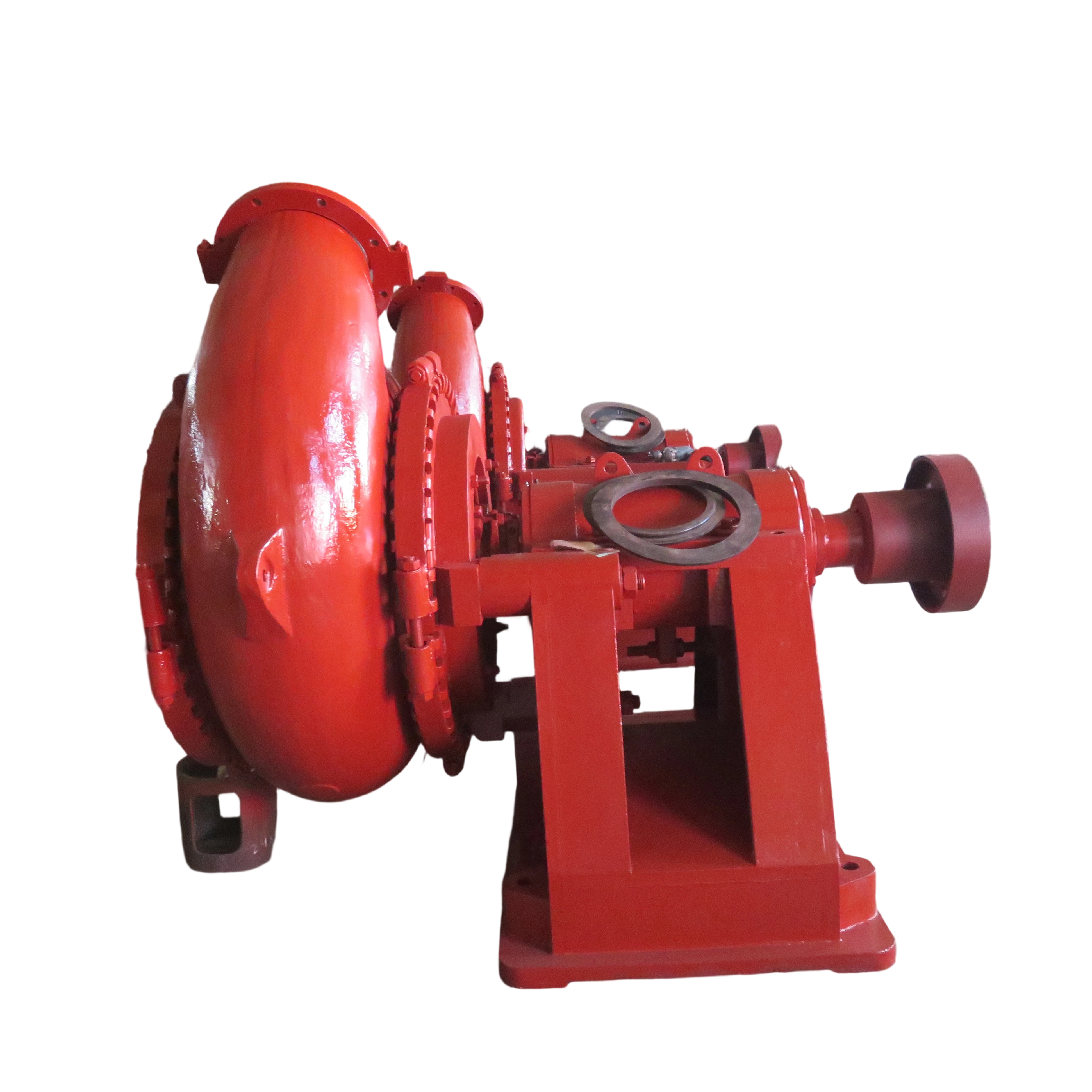

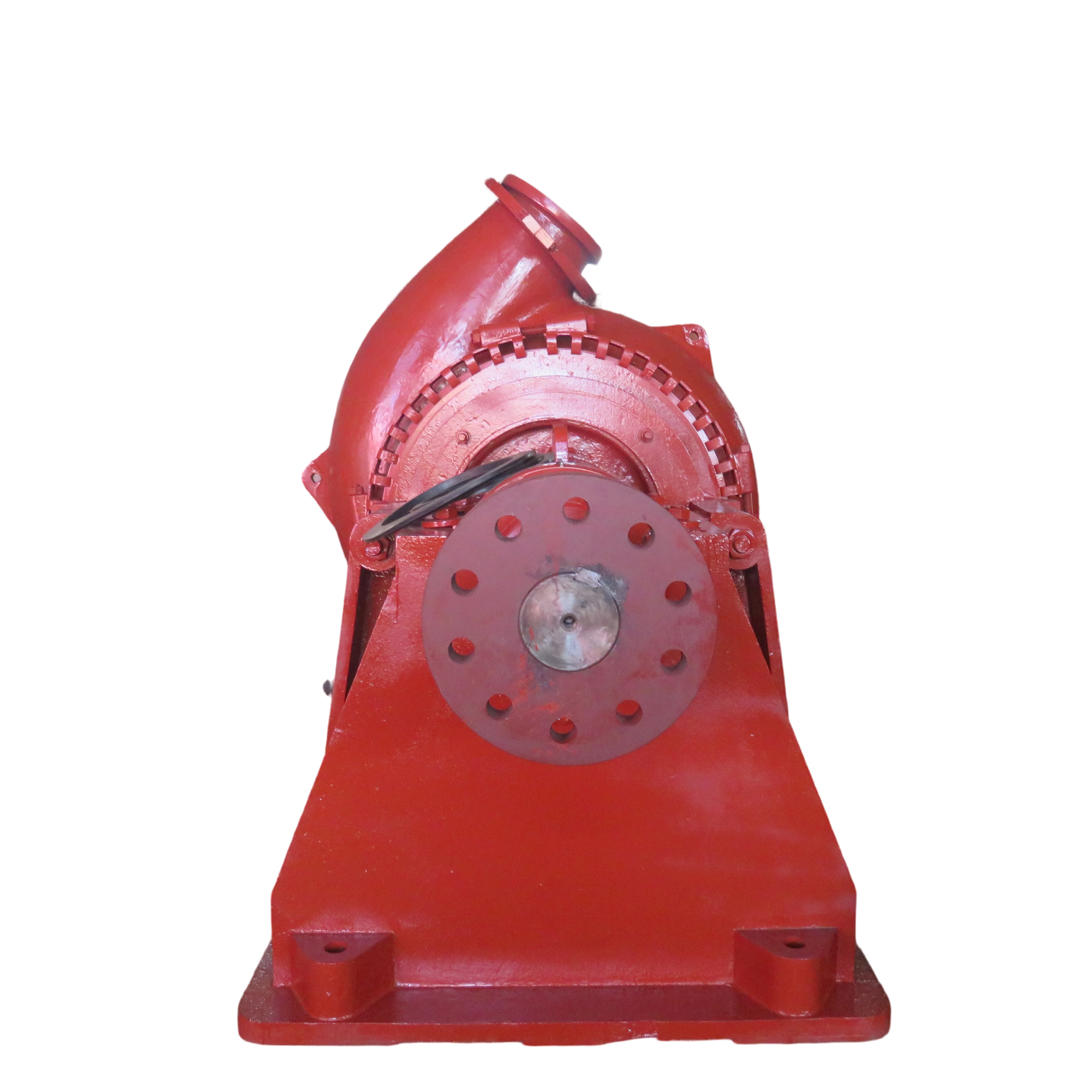

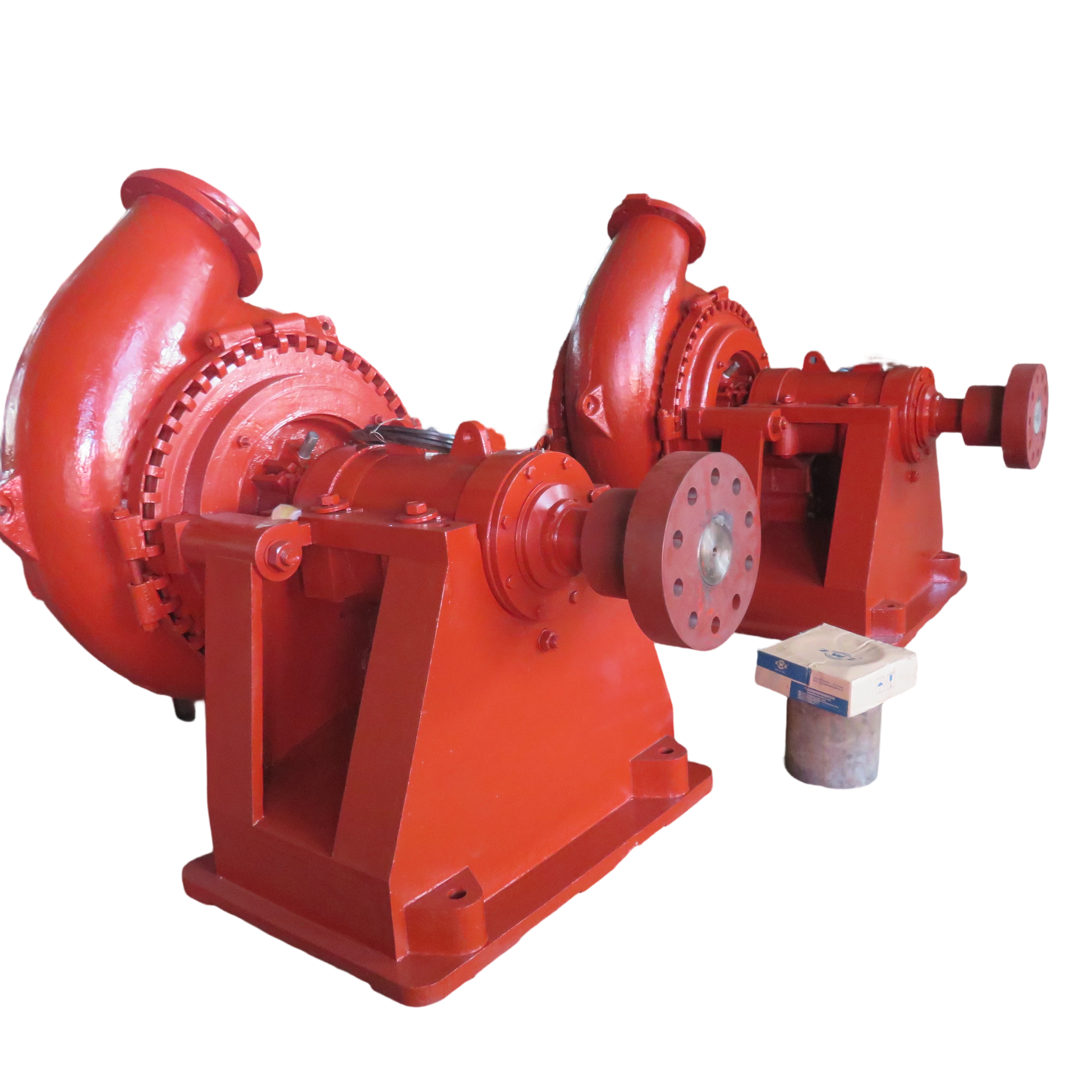

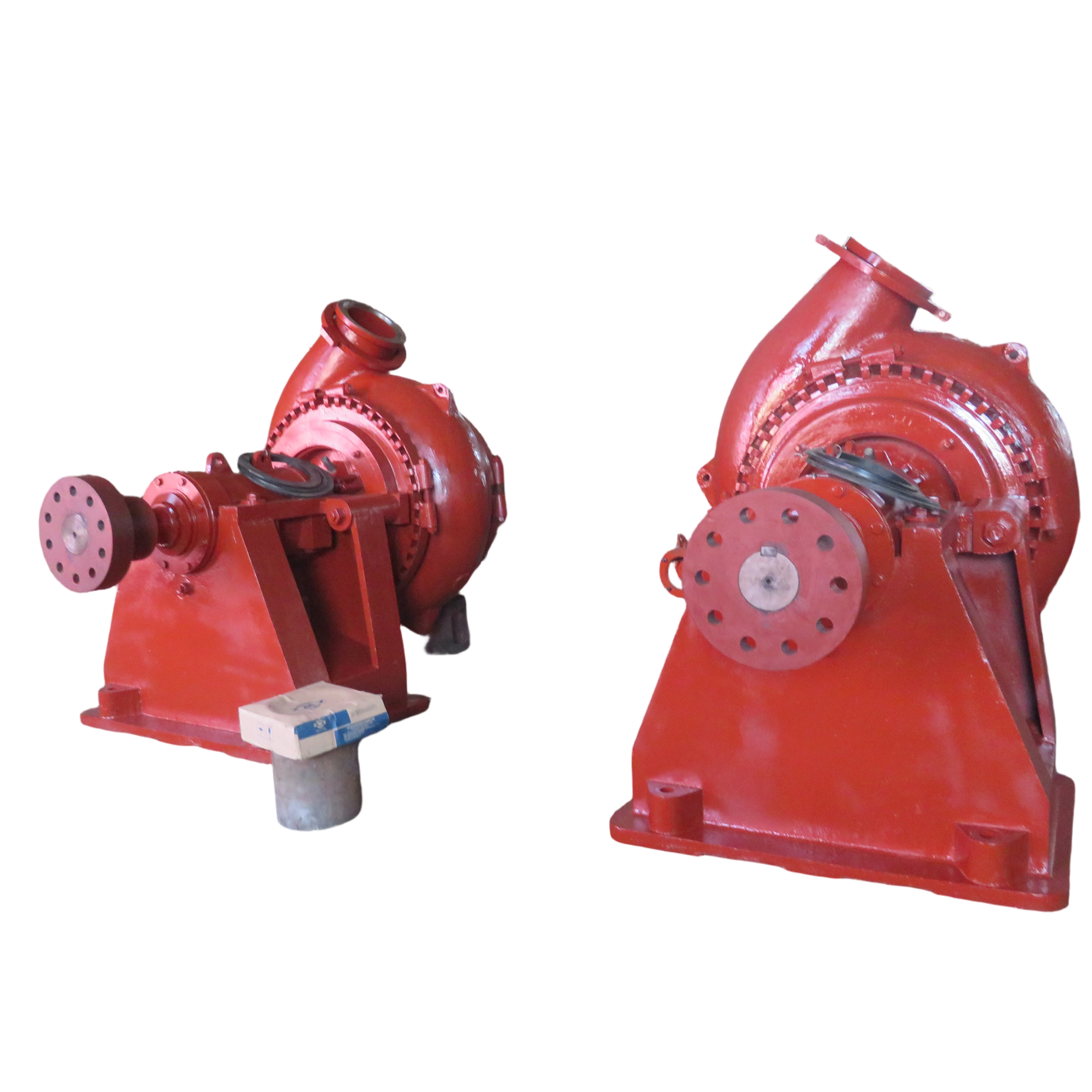

12-10G-G gravel pump
The G-type gravel pump is a heavy-duty horizontal centrifugal pump specifically designed for conveying large particles, high concentrations of gravel, and highly abrasive media. This pump features a robust structure, a wide flow channel that is not easily clogged, and the ability to stably convey media containing sand, gravel, and slurry. The entire unit incorporates a wear-resistant design, ensuring reliable operation and suitability for continuous high-load conditions. It is widely used in river dredging, sand mining, mining, and port engineering.
| Features |
|---|
| The horizontal single-stage centrifuge structure ensures stable operation and convenient maintenance. |
| The wide flow channel is suitable for conveying large-particle, high-concentration gravel media. |
| Key flow-through components are made of high wear-resistant alloy materials, resulting in a long service life. |
| It has strong resistance to abrasion and corrosion and is suitable for continuous operation under harsh working conditions. |
| Simple and robust structure, suitable for on-site installation and maintenance. |
| It can be used with diesel engines or electric motors to adapt to various operating environments. |
| Technical parameters | |
|---|---|
| Product Name | G-type gravel pump |
| Pump type structure | Horizontal single-stage centrifugal pump |
| Rated flow rate |
50–3000 m³/h |
| Rated head |
10–60 m |
| Maximum passing particle | ≤300 mm (depending on model) |
| Work pressure |
≤0.6 MPa |
| Pump body material | High-chromium wear-resistant alloy |
| Transmission method | Electric motor drive / Diesel engine drive |
| Application Media | Sand, water, mud, gravel mixture |
| Installation method | Base installation |
Strict inspection of composition and dimensions ensures stability from the source.
Key components like impellers and shafts are CNC machined for high consistency.
Coating and heat treatment tailored for water, sewage, slurry, and chemical environments.
Assembly by SOP (Standard Operating Procedure) ensures minimized vibration and leak-proof performance.
Full testing of head, flow, and efficiency before delivery for complete traceability.
Customized wooden crates or pallets with moisture-proof measures for long-distance transport.
Investing in equipment and training to ensure stable, high-quality international delivery.
Providing precautions and connection advice via documentation or video support for correct startup.
Maintenance advice on lubrication, sealing, and periodic inspections to extend equipment life.
Long-term supply of common spare parts and selection assistance from our engineering team.
Rapid analysis and solutions for any abnormalities found during use.
Regular check-ins on equipment status to provide optimization suggestions.
Committed to a professional, stable, and responsible service system for global partners.
-
