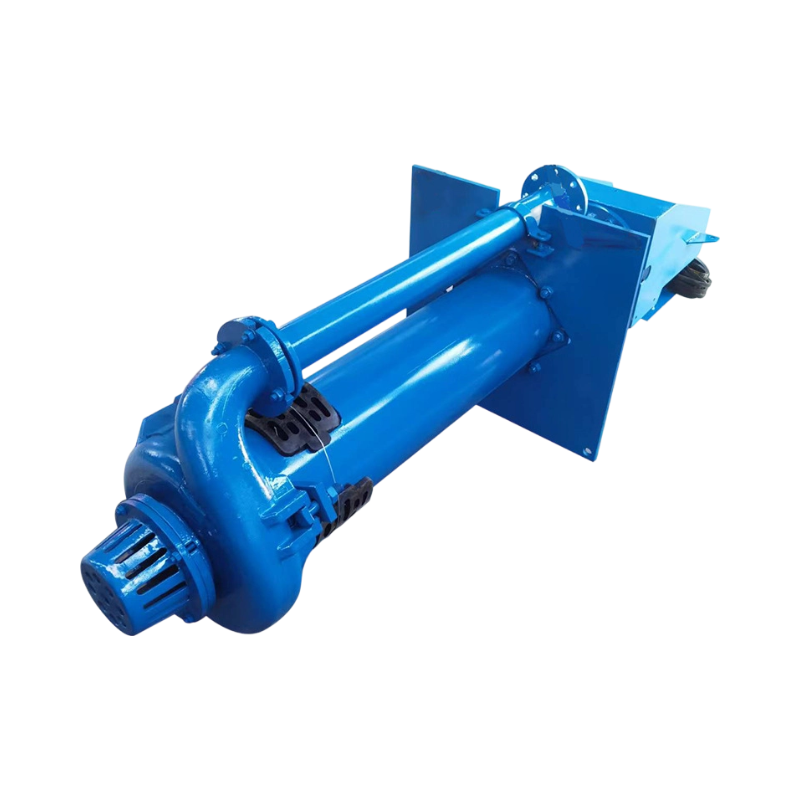

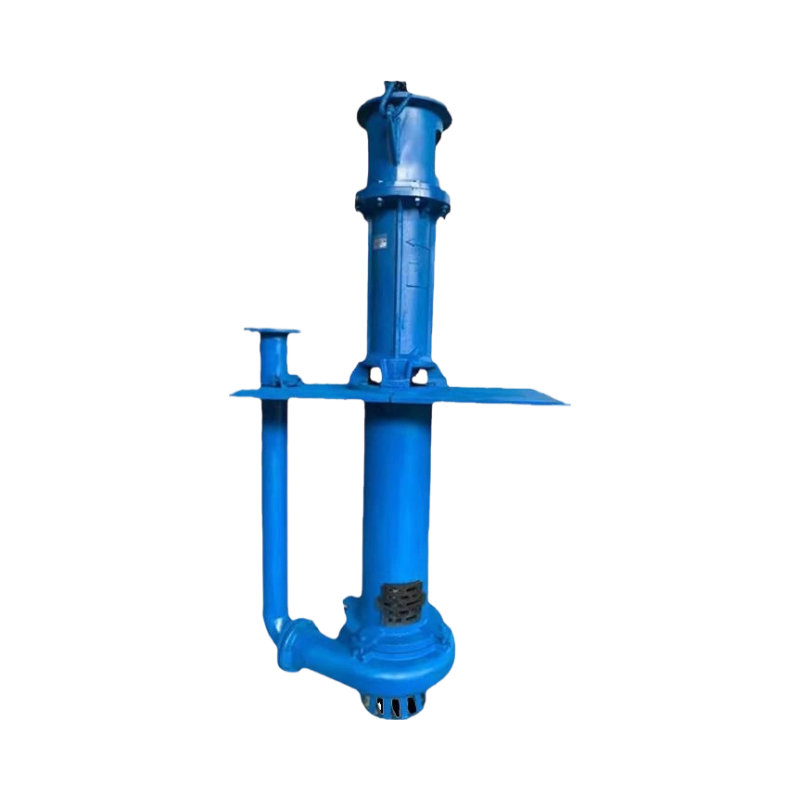

SP Submersible Slurry Pump
The submersible pump is a vertical centrifugal slurry pump, immersed in liquid, used for conveying abrasive, coarse-particle, high-concentration slurries. It requires no shaft seal or sealing water and can operate normally even with insufficient suction. The pump body is made of wear-resistant metal, and the impeller is made of wear-resistant metal, rubber, or polyurethane. All submerged parts are lined with rubber. It is suitable for conveying corrosive slurries.
| Features |
|---|
| Vertical submersible design allows the pump body to operate submerged, eliminating the need for shaft seals and reducing the risk of leakage. |
| Suitable for conveying abrasive, high-concentration, or solid-particle-containing slurry media. |
| The flow-through components are made of wear-resistant metal or rubber materials, which are wear-resistant and corrosion-resistant. |
| Simple structure, easy installation, and low maintenance cost |
| Submersible shafts of different lengths can be configured according to operating conditions to adapt to different liquid levels. |
| Stable operation, suitable for continuous working conditions |
| Technical parameters | |
|---|---|
| Product Name | SP Submersible Slurry Pump |
| Pump type structure | Vertical submersible centrifugal slurry pump |
| Rated flow rate |
5–1500 m³/h |
| Rated head |
5–45 m |
| underarm length | 0.9–3.0 m (customizable) |
| working methods | underarm running |
| Material of flow-through components | Wear-resistant alloy / rubber |
| driving method | direct motor connection |
| Applicable media | Slurry containing solid particles, mineral slurry, mud |
| Installation method | Vertical fixed installation |
Strict inspection of composition and dimensions ensures stability from the source.
Key components like impellers and shafts are CNC machined for high consistency.
Coating and heat treatment tailored for water, sewage, slurry, and chemical environments.
Assembly by SOP (Standard Operating Procedure) ensures minimized vibration and leak-proof performance.
Full testing of head, flow, and efficiency before delivery for complete traceability.
Customized wooden crates or pallets with moisture-proof measures for long-distance transport.
Investing in equipment and training to ensure stable, high-quality international delivery.
Providing precautions and connection advice via documentation or video support for correct startup.
Maintenance advice on lubrication, sealing, and periodic inspections to extend equipment life.
Long-term supply of common spare parts and selection assistance from our engineering team.
Rapid analysis and solutions for any abnormalities found during use.
Regular check-ins on equipment status to provide optimization suggestions.
Committed to a professional, stable, and responsible service system for global partners.
-
